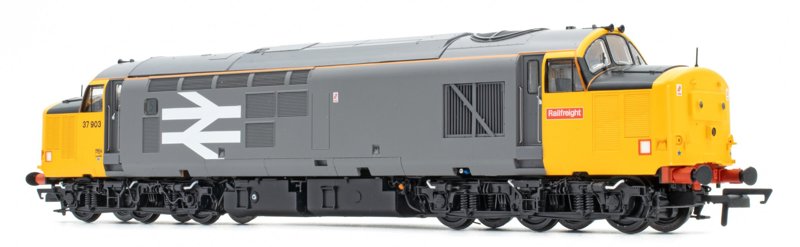

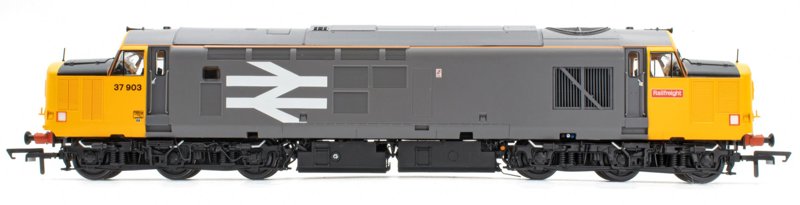

Accurascale ACC3157 Class 37/9 37903 Railfreight Diesel Locomotive
Product Details
Accurascale
ACC3157
OO Gauge (1:76 Scale)
Class 37/9 37903 Railfreight Diesel Locomotive
DCC Ready. 21-pin socket
OO Gauge (1:76 Scale)
Class 37/9 37903 Railfreight Diesel Locomotive
DCC Ready. 21-pin socket
Tooling Specification and Features
Bodyshell
Bodyshells represented (of Prototypes) |
Class 37/0 as built - split headcode Class 37/4 Class 37/6 - centre headcode Class 37/6 - WIPAC headlights |
Detailing
Bodyshell - factory-fitted separate details |
Company branding Door handles Fan Grill (etched) Fan(s) Handrails Horn(s) Jumper cables Lamp irons Nameplates - etched - pre-fitted Radio antenna Side grilles (etched) |
Bufferbeam detail (in detailing pack) |
Snow plough |
Bufferbeam detail (pre-fitted) |
Cosmetic screw link coupling Lifeguard Pipework - pre-fitted to front Pipework - pre-fitted to rear Sprung buffers |
Cab, footplate & interior detail |
Detailed & painted Glazing Seating Window wipers |
Chassis/underframe detail |
Battery box Brake rigging chassis Footsteps Fuel tank Pipework Sanding gear Speedometer cable |
Detail pack also contains... |
Alternative headcodes |
Wheel "aesthetics" |
Chemically-blackened Finescale Painted |
Mechanical
Body Construction |
Plastic with metal parts |
Chassis construction |
Heavy diecast |
Coupling socket/mounting |
NEM pockets |
Coupling type |
Tension lock |
Loco-driven wheels (number of) |
12 wheels |
Minimum radius |
Radius 2 |
Separating the body from the chassis |
Secured with one or more screws |
Weighting (to assist adhesion) |
Within chassis |
Electrical
DCC Capability: |
DCC Ready. 21-pin socket |
DCC speaker |
Provision for EM2 speaker and sugar cube speaker |
Motor location |
Centre of chassis |
Motor type |
5-pole with two flywheels |
Pickups |
All wheels |
Power collection |
2 rail DC |
Working lights |
Cab light Directional headlights & tail lights Engine bay Headlights (independent) Instrument panel lighting Tail lights (independent) |
